pymovements in 10 minutes#

What you will learn in this tutorial:#

  • how to download one of the publicly available datasets

  • how to load a subset of the data into your memory

  • how to transform pixel coordinates into degrees of visual angle

  • how to transform positional data into velocity data

  • how to detect fixations by using the I-VT algorithm

  • how to detect saccades by using the microsaccades algorithm

  • how to compute additional event properties for your analysis

  • how to save your preprocessed data

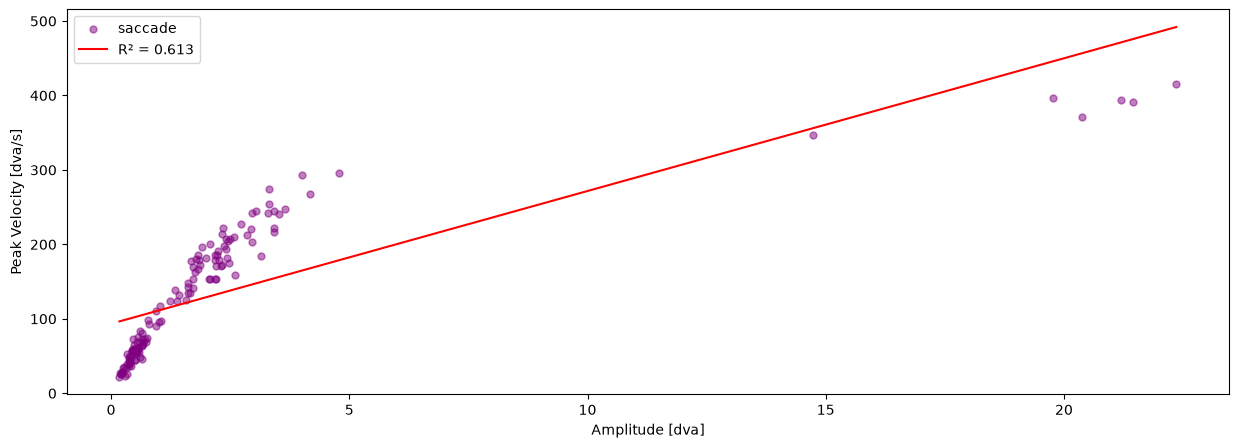

  • how to plot the main saccadic sequence from your data

Downloading one of the public datasets#

We import pymovements as the alias pm for convenience.

import pymovements as pm

pymovements provides a library of publicly available datasets.

You can browse through the available dataset definitions here: Dataset

For this tutorial we will limit ourselves to the ToyDataset due to its minimal space requirements.

Other datasets can be downloaded by simply replacing ToyDataset with one of the other available datasets.

We can initialize and download by passing the desired dataset name as a string argument.

Additionally, we need the root directory path of your data.

dataset = pm.Dataset('ToyDataset', path='data/ToyDataset')
dataset.download()

INFO:pymovements.dataset.dataset:
        You are downloading the pymovements Toy Dataset. Please be aware that pymovements does not
        host or distribute any dataset resources and only provides a convenient interface to
        download the public dataset resources that were published by their respective authors.

        Please cite the referenced publication if you intend to use the dataset in your research.


Downloading https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip to data/ToyDataset/downloads/pymovements-toy-dataset.zip

Checking integrity of pymovements-toy-dataset.zip
Extracting pymovements-toy-dataset.zip to data/ToyDataset/raw

Extracting archive:   0%|          | 0/23 [00:00<?, ?file/s]

Extracting archive: 100%|██████████| 23/23 [00:00<00:00, 364.50file/s]
Dataset
  • DatasetDefinition
    DatasetDefinition
    • name:
      'ToyDataset'
    • long_name:
      'pymovements Toy Dataset'
    • 'Example toy dataset. This dataset includes monocu...'
      'Example toy dataset.\n\nThis dataset includes monocular eye tracking data from a single participant in a single\nsession. Eye movements are recorded at a sampling frequency of 1000 Hz using an EyeLink Portable\nDuo video-based eye tracker and are provided as pixel coordinates.\n\nThe participant is instructed to read 4 texts with 5 screens each.\n'
    • Experiment
      Experiment
      • EyeTracker
        EyeTracker
        • left:
          None
        • model:
          None
        • mount:
          None
        • right:
          None
        • sampling_rate:
          1000
        • vendor:
          None
        • version:
          None
      • Screen
        Screen
        • distance_cm:
          68
        • height_cm:
          30.2
        • height_px:
          1024
        • origin:
          'upper left'
        • tuple (2 items)
          • 1280
          • 1024
        • tuple (2 items)
          • 38
          • 30.2
        • width_cm:
          38
        • width_px:
          1280
        • x_max_dva:
          15.599386487782953
        • x_min_dva:
          -15.599386487782953
        • y_max_dva:
          12.508044410882546
        • y_min_dva:
          -12.508044410882546
    • list (1 items)
      • ResourceDefinition
        • content:
          'gaze'
        • filename:
          'pymovements-toy-dataset.zip'
        • filename_pattern:
          'trial_{text_id:d}_{page_id:d}.csv'
        • dict (2 items)
          • text_id:
            <class 'int'>
          • page_id:
            <class 'int'>
        • load_function:
          None
        • dict (4 items)
          • time_column:
            'timestamp'
          • time_unit:
            'ms'
          • (2 more)
        • md5:
          '256901852c1c07581d375eef705855d6'
        • mirrors:
          None
        • WebSource
          WebSource(url='https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip', filename='pymovements-toy-dataset.zip', md5='256901852c1c07581d375eef705855d6', mirrors=None)
        • 'https://github.com/pymovements/pymovements-toy-dat...'
          'https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip'
  • events:
    tuple (0 items)
  • DataFrame (0 columns, 0 rows)
    shape: (0, 0)
  • gaze:
    list (0 items)
  • Participants
    Participants
    • DataFrame (1 columns, 0 rows)
      shape: (0, 1)
      participant_id
      str
    • dict (1 items)
      • dict (1 items)
        • Format:
          'string'
  • path:
    PosixPath('data/ToyDataset')
  • DatasetPaths
    DatasetPaths
    • dataset:
      PosixPath('data/ToyDataset')
    • downloads:
      PosixPath('data/ToyDataset/downloads')
    • events:
      PosixPath('data/ToyDataset/events')
    • precomputed_events:
      PosixPath('data/ToyDataset/precomputed_events')
    • precomputed_reading_measures:
      PosixPath('data/ToyDataset/precomputed_reading_measures')
    • preprocessed:
      PosixPath('data/ToyDataset/preprocessed')
    • raw:
      PosixPath('data/ToyDataset/raw')
    • root:
      PosixPath('data/ToyDataset')
    • stimuli:
      PosixPath('data/ToyDataset/stimuli')
  • precomputed_events:
    list (0 items)
  • precomputed_reading_measures:
    list (0 items)
  • stimuli:
    list (0 items)

Our downloaded dataset will be placed in a new directory with the name of the dataset:

dataset.path

PosixPath('data/ToyDataset')

Archive files are automatically extracted into the path specified by Dataset.paths.raw:

dataset.paths.raw

PosixPath('data/ToyDataset/raw')

Loading in your data into memory#

Next, we load our dataset into memory to be able to work with it:

dataset.load()
Dataset
  • DatasetDefinition
    DatasetDefinition
    • name:
      'ToyDataset'
    • long_name:
      'pymovements Toy Dataset'
    • 'Example toy dataset. This dataset includes monocu...'
      'Example toy dataset.\n\nThis dataset includes monocular eye tracking data from a single participant in a single\nsession. Eye movements are recorded at a sampling frequency of 1000 Hz using an EyeLink Portable\nDuo video-based eye tracker and are provided as pixel coordinates.\n\nThe participant is instructed to read 4 texts with 5 screens each.\n'
    • Experiment
      Experiment
      • EyeTracker
        EyeTracker
        • left:
          None
        • model:
          None
        • mount:
          None
        • right:
          None
        • sampling_rate:
          1000
        • vendor:
          None
        • version:
          None
      • Screen
        Screen
        • distance_cm:
          68
        • height_cm:
          30.2
        • height_px:
          1024
        • origin:
          'upper left'
        • tuple (2 items)
          • 1280
          • 1024
        • tuple (2 items)
          • 38
          • 30.2
        • width_cm:
          38
        • width_px:
          1280
        • x_max_dva:
          15.599386487782953
        • x_min_dva:
          -15.599386487782953
        • y_max_dva:
          12.508044410882546
        • y_min_dva:
          -12.508044410882546
    • list (1 items)
      • ResourceDefinition
        • content:
          'gaze'
        • filename:
          'pymovements-toy-dataset.zip'
        • filename_pattern:
          'trial_{text_id:d}_{page_id:d}.csv'
        • dict (2 items)
          • text_id:
            <class 'int'>
          • page_id:
            <class 'int'>
        • load_function:
          None
        • dict (4 items)
          • time_column:
            'timestamp'
          • time_unit:
            'ms'
          • (2 more)
        • md5:
          '256901852c1c07581d375eef705855d6'
        • mirrors:
          None
        • WebSource
          WebSource(url='https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip', filename='pymovements-toy-dataset.zip', md5='256901852c1c07581d375eef705855d6', mirrors=None)
        • 'https://github.com/pymovements/pymovements-toy-dat...'
          'https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip'
  • tuple (20 items)
    • Events
      • DataFrame (4 columns, 0 rows)
        shape: (0, 4)
        nameonsetoffsetduration
        stri64i64i64
      • trial_columns:
        None
    • Events
      • DataFrame (4 columns, 0 rows)
        shape: (0, 4)
        nameonsetoffsetduration
        stri64i64i64
      • trial_columns:
        None
    • (18 more)
  • dict (1 items)
    • DataFrame (3 columns, 20 rows)
      shape: (20, 3)
      text_idpage_idfilepath
      i64i64str
      01"pymovements-toy-dataset-main/d…
      02"pymovements-toy-dataset-main/d…
      03"pymovements-toy-dataset-main/d…
      04"pymovements-toy-dataset-main/d…
      05"pymovements-toy-dataset-main/d…
      ………
      31"pymovements-toy-dataset-main/d…
      32"pymovements-toy-dataset-main/d…
      33"pymovements-toy-dataset-main/d…
      34"pymovements-toy-dataset-main/d…
      35"pymovements-toy-dataset-main/d…
  • list (20 items)
    • Gaze
      • DataFrame (4 columns, 17223 rows)
        shape: (17_223, 4)
        timestimuli_xstimuli_ypixel
        i64f64f64list[f64]
        1988145-1.0-1.0[206.8, 152.4]
        1988146-1.0-1.0[206.9, 152.1]
        1988147-1.0-1.0[207.0, 151.8]
        1988148-1.0-1.0[207.1, 151.7]
        1988149-1.0-1.0[207.0, 151.5]
        …………
        2005363-1.0-1.0[361.0, 415.4]
        2005364-1.0-1.0[358.0, 414.5]
        2005365-1.0-1.0[355.8, 413.8]
        2005366-1.0-1.0[353.1, 413.2]
        2005367-1.0-1.0[351.2, 412.9]
      • Events
        Events
        • DataFrame (4 columns, 0 rows)
          shape: (0, 4)
          nameonsetoffsetduration
          stri64i64i64
        • trial_columns:
          None
      • dict (2 items)
        • text_id:
          0
        • page_id:
          1
      • messages:
        None
      • trial_columns:
        None
      • Experiment
        Experiment
        • EyeTracker
          EyeTracker
          • left:
            None
          • model:
            None
          • mount:
            None
          • right:
            None
          • sampling_rate:
            1000
          • vendor:
            None
          • version:
            None
        • Screen
          Screen
          • distance_cm:
            68
          • height_cm:
            30.2
          • height_px:
            1024
          • origin:
            'upper left'
          • tuple (2 items)
            • 1280
            • 1024
          • tuple (2 items)
            • 38
            • 30.2
          • width_cm:
            38
          • width_px:
            1280
          • x_max_dva:
            15.599386487782953
          • x_min_dva:
            -15.599386487782953
          • y_max_dva:
            12.508044410882546
          • y_min_dva:
            -12.508044410882546
    • Gaze
      • DataFrame (4 columns, 29799 rows)
        shape: (29_799, 4)
        timestimuli_xstimuli_ypixel
        i64f64f64list[f64]
        2008305-1.0-1.0[141.4, 153.6]
        2008306-1.0-1.0[141.1, 153.2]
        2008307-1.0-1.0[140.7, 152.8]
        2008308-1.0-1.0[140.6, 152.7]
        2008309-1.0-1.0[140.5, 152.6]
        …………
        2038099-1.0-1.0[273.8, 773.8]
        2038100-1.0-1.0[273.8, 774.1]
        2038101-1.0-1.0[273.9, 774.5]
        2038102-1.0-1.0[274.0, 774.4]
        2038103-1.0-1.0[274.0, 773.9]
      • Events
        Events
        • DataFrame (4 columns, 0 rows)
          shape: (0, 4)
          nameonsetoffsetduration
          stri64i64i64
        • trial_columns:
          None
      • dict (2 items)
        • text_id:
          0
        • page_id:
          2
      • messages:
        None
      • trial_columns:
        None
      • Experiment
        Experiment
        • EyeTracker
          EyeTracker
          • left:
            None
          • model:
            None
          • mount:
            None
          • right:
            None
          • sampling_rate:
            1000
          • vendor:
            None
          • version:
            None
        • Screen
          Screen
          • distance_cm:
            68
          • height_cm:
            30.2
          • height_px:
            1024
          • origin:
            'upper left'
          • tuple (2 items)
            • 1280
            • 1024
          • tuple (2 items)
            • 38
            • 30.2
          • width_cm:
            38
          • width_px:
            1280
          • x_max_dva:
            15.599386487782953
          • x_min_dva:
            -15.599386487782953
          • y_max_dva:
            12.508044410882546
          • y_min_dva:
            -12.508044410882546
    • (18 more)
  • Participants
    Participants
    • DataFrame (1 columns, 0 rows)
      shape: (0, 1)
      participant_id
      str
    • dict (1 items)
      • dict (1 items)
        • Format:
          'string'
  • path:
    PosixPath('data/ToyDataset')
  • DatasetPaths
    DatasetPaths
    • dataset:
      PosixPath('data/ToyDataset')
    • downloads:
      PosixPath('data/ToyDataset/downloads')
    • events:
      PosixPath('data/ToyDataset/events')
    • precomputed_events:
      PosixPath('data/ToyDataset/precomputed_events')
    • precomputed_reading_measures:
      PosixPath('data/ToyDataset/precomputed_reading_measures')
    • preprocessed:
      PosixPath('data/ToyDataset/preprocessed')
    • raw:
      PosixPath('data/ToyDataset/raw')
    • root:
      PosixPath('data/ToyDataset')
    • stimuli:
      PosixPath('data/ToyDataset/stimuli')
  • precomputed_events:
    list (0 items)
  • precomputed_reading_measures:
    list (0 items)
  • stimuli:
    list (0 items)

This way we fill two attributes with data. First we have the fileinfo attribute which holds all the basic information for files:

dataset.fileinfo['gaze'].head()
shape: (5, 3)
text_idpage_idfilepath
i64i64str
01"pymovements-toy-dataset-main/d…
02"pymovements-toy-dataset-main/d…
03"pymovements-toy-dataset-main/d…
04"pymovements-toy-dataset-main/d…
05"pymovements-toy-dataset-main/d…

We notice that for each filepath a text_id and page_id is specified.

We have also loaded our gaze data into the dataframes in the gaze attribute:

dataset.gaze[0]
Gaze
  • DataFrame (4 columns, 17223 rows)
    shape: (17_223, 4)
    timestimuli_xstimuli_ypixel
    i64f64f64list[f64]
    1988145-1.0-1.0[206.8, 152.4]
    1988146-1.0-1.0[206.9, 152.1]
    1988147-1.0-1.0[207.0, 151.8]
    1988148-1.0-1.0[207.1, 151.7]
    1988149-1.0-1.0[207.0, 151.5]
    …………
    2005363-1.0-1.0[361.0, 415.4]
    2005364-1.0-1.0[358.0, 414.5]
    2005365-1.0-1.0[355.8, 413.8]
    2005366-1.0-1.0[353.1, 413.2]
    2005367-1.0-1.0[351.2, 412.9]
  • Events
    Events
    • DataFrame (4 columns, 0 rows)
      shape: (0, 4)
      nameonsetoffsetduration
      stri64i64i64
    • trial_columns:
      None
  • dict (2 items)
    • text_id:
      0
    • page_id:
      1
  • messages:
    None
  • trial_columns:
    None
  • Experiment
    Experiment
    • EyeTracker
      EyeTracker
      • left:
        None
      • model:
        None
      • mount:
        None
      • right:
        None
      • sampling_rate:
        1000
      • vendor:
        None
      • version:
        None
    • Screen
      Screen
      • distance_cm:
        68
      • height_cm:
        30.2
      • height_px:
        1024
      • origin:
        'upper left'
      • tuple (2 items)
        • 1280
        • 1024
      • tuple (2 items)
        • 38
        • 30.2
      • width_cm:
        38
      • width_px:
        1280
      • x_max_dva:
        15.599386487782953
      • x_min_dva:
        -15.599386487782953
      • y_max_dva:
        12.508044410882546
      • y_min_dva:
        -12.508044410882546

Apart from some trial identifier columns we see the columns time and pixel.

The last two columns refer to the pixel coordinates at the timestep specified by time.

We are also able to just take a subset of the data by specifying values of the fileinfo columns. The key refers to the column in the fileinfo dataframe. The values in the dictionary can be of type bool, int, float or str, but also lists and ranges

subset = {
    'text_id': 0,
    'page_id': [0, 1],
}
dataset.load(subset=subset)

dataset.fileinfo

{'gaze': shape: (1, 3)
 ┌─────────┬─────────┬─────────────────────────────────┐
 │ text_id ┆ page_id ┆ filepath                        │
 │ ---     ┆ ---     ┆ ---                             │
 │ i64     ┆ i64     ┆ str                             │
 ╞═════════╪═════════╪═════════════════════════════════╡
 │ 0       ┆ 1       ┆ pymovements-toy-dataset-main/d… │
 └─────────┴─────────┴─────────────────────────────────┘}

Now we selected only a small subset of our data.

Preprocessing raw gaze data#

We now want to preprocess our gaze data by transforming pixel coordinates into degrees of visual angle and then computing velocity data from our positional data.

dataset.pix2deg()

dataset.gaze[0]
Gaze
  • DataFrame (5 columns, 17223 rows)
    shape: (17_223, 5)
    timestimuli_xstimuli_ypixelposition
    i64f64f64list[f64]list[f64]
    1988145-1.0-1.0[206.8, 152.4][-10.697598, -8.852399]
    1988146-1.0-1.0[206.9, 152.1][-10.695183, -8.859678]
    1988147-1.0-1.0[207.0, 151.8][-10.692768, -8.866956]
    1988148-1.0-1.0[207.1, 151.7][-10.690352, -8.869381]
    1988149-1.0-1.0[207.0, 151.5][-10.692768, -8.874233]
    ……………
    2005363-1.0-1.0[361.0, 415.4][-6.932438, -2.386672]
    2005364-1.0-1.0[358.0, 414.5][-7.006376, -2.408998]
    2005365-1.0-1.0[355.8, 413.8][-7.060582, -2.426362]
    2005366-1.0-1.0[353.1, 413.2][-7.12709, -2.441245]
    2005367-1.0-1.0[351.2, 412.9][-7.173881, -2.448686]
  • Events
    Events
    • DataFrame (4 columns, 0 rows)
      shape: (0, 4)
      nameonsetoffsetduration
      stri64i64i64
    • trial_columns:
      None
  • dict (2 items)
    • text_id:
      0
    • page_id:
      1
  • messages:
    None
  • trial_columns:
    None
  • Experiment
    Experiment
    • EyeTracker
      EyeTracker
      • left:
        None
      • model:
        None
      • mount:
        None
      • right:
        None
      • sampling_rate:
        1000
      • vendor:
        None
      • version:
        None
    • Screen
      Screen
      • distance_cm:
        68
      • height_cm:
        30.2
      • height_px:
        1024
      • origin:
        'upper left'
      • tuple (2 items)
        • 1280
        • 1024
      • tuple (2 items)
        • 38
        • 30.2
      • width_cm:
        38
      • width_px:
        1280
      • x_max_dva:
        15.599386487782953
      • x_min_dva:
        -15.599386487782953
      • y_max_dva:
        12.508044410882546
      • y_min_dva:
        -12.508044410882546

We notice that a new column has appeared: position. This column specifies the position coordinates in degrees of visual angle (dva).

For transforming our positional data into velocity data, we will use the Savitzky-Golay differentiation filter.

We can also specify some additional parameters for this method:

dataset.pos2vel(method='savitzky_golay', degree=2, window_length=7)

dataset.gaze[0]
Gaze
  • DataFrame (6 columns, 17223 rows)
    shape: (17_223, 6)
    timestimuli_xstimuli_ypixelpositionvelocity
    i64f64f64list[f64]list[f64]list[f64]
    1988145-1.0-1.0[206.8, 152.4][-10.697598, -8.852399][1.207641, -3.119165]
    1988146-1.0-1.0[206.9, 152.1][-10.695183, -8.859678][1.20764, -4.072198]
    1988147-1.0-1.0[207.0, 151.8][-10.692768, -8.866956][1.035119, -4.765267]
    1988148-1.0-1.0[207.1, 151.7][-10.690352, -8.869381][1.207654, -4.245382]
    1988149-1.0-1.0[207.0, 151.5][-10.692768, -8.874233][1.552735, -2.339263]
    ………………
    2005363-1.0-1.0[361.0, 415.4][-6.932438, -2.386672][-62.062479, -20.465552]
    2005364-1.0-1.0[358.0, 414.5][-7.006376, -2.408998][-61.343786, -18.073031]
    2005365-1.0-1.0[355.8, 413.8][-7.060582, -2.426362][-53.501231, -14.617634]
    2005366-1.0-1.0[353.1, 413.2][-7.12709, -2.441245][-41.879965, -10.276475]
    2005367-1.0-1.0[351.2, 412.9][-7.173881, -2.448686][-27.710881, -6.112645]
  • Events
    Events
    • DataFrame (4 columns, 0 rows)
      shape: (0, 4)
      nameonsetoffsetduration
      stri64i64i64
    • trial_columns:
      None
  • dict (2 items)
    • text_id:
      0
    • page_id:
      1
  • messages:
    None
  • trial_columns:
    None
  • Experiment
    Experiment
    • EyeTracker
      EyeTracker
      • left:
        None
      • model:
        None
      • mount:
        None
      • right:
        None
      • sampling_rate:
        1000
      • vendor:
        None
      • version:
        None
    • Screen
      Screen
      • distance_cm:
        68
      • height_cm:
        30.2
      • height_px:
        1024
      • origin:
        'upper left'
      • tuple (2 items)
        • 1280
        • 1024
      • tuple (2 items)
        • 38
        • 30.2
      • width_cm:
        38
      • width_px:
        1280
      • x_max_dva:
        15.599386487782953
      • x_min_dva:
        -15.599386487782953
      • y_max_dva:
        12.508044410882546
      • y_min_dva:
        -12.508044410882546

There is also the more general apply() method, which can be used to apply both transformation and event detection methods.

dataset.apply('pos2acc', degree=2, window_length=7)

dataset.gaze[0]
Gaze
  • DataFrame (7 columns, 17223 rows)
    shape: (17_223, 7)
    timestimuli_xstimuli_ypixelpositionvelocityacceleration
    i64f64f64list[f64]list[f64]list[f64]list[f64]
    1988145-1.0-1.0[206.8, 152.4][-10.697598, -8.852399][1.207641, -3.119165][690.085837, -1501.799767]
    1988146-1.0-1.0[206.9, 152.1][-10.695183, -8.859678][1.20764, -4.072198][0.001831, -866.371365]
    1988147-1.0-1.0[207.0, 151.8][-10.692768, -8.866956][1.035119, -4.765267][-575.06741, -57.655244]
    1988148-1.0-1.0[207.1, 151.7][-10.690352, -8.869381][1.207654, -4.245382][-230.013049, 1328.57081]
    1988149-1.0-1.0[207.0, 151.5][-10.692768, -8.874233][1.552735, -2.339263][690.12611, 2021.586565]
    …………………
    2005363-1.0-1.0[361.0, 415.4][-6.932438, -2.386672][-62.062479, -20.465552][-1099.087619, 1477.17518]
    2005364-1.0-1.0[358.0, 414.5][-7.006376, -2.408998][-61.343786, -18.073031][1834.348384, 2599.156806]
    2005365-1.0-1.0[355.8, 413.8][-7.060582, -2.426362][-53.501231, -14.617634][9396.15507, 4547.960553]
    2005366-1.0-1.0[353.1, 413.2][-7.12709, -2.441245][-41.879965, -10.276475][16194.183852, 5079.286997]
    2005367-1.0-1.0[351.2, 412.9][-7.173881, -2.448686][-27.710881, -6.112645][16598.914618, 4193.246498]
  • Events
    Events
    • DataFrame (4 columns, 0 rows)
      shape: (0, 4)
      nameonsetoffsetduration
      stri64i64i64
    • trial_columns:
      None
  • dict (2 items)
    • text_id:
      0
    • page_id:
      1
  • messages:
    None
  • trial_columns:
    None
  • Experiment
    Experiment
    • EyeTracker
      EyeTracker
      • left:
        None
      • model:
        None
      • mount:
        None
      • right:
        None
      • sampling_rate:
        1000
      • vendor:
        None
      • version:
        None
    • Screen
      Screen
      • distance_cm:
        68
      • height_cm:
        30.2
      • height_px:
        1024
      • origin:
        'upper left'
      • tuple (2 items)
        • 1280
        • 1024
      • tuple (2 items)
        • 38
        • 30.2
      • width_cm:
        38
      • width_px:
        1280
      • x_max_dva:
        15.599386487782953
      • x_min_dva:
        -15.599386487782953
      • y_max_dva:
        12.508044410882546
      • y_min_dva:
        -12.508044410882546

Detecting events#

Now let’s detect some events.

First, we will detect fixations using the I-VT algorithm using its default parameters:

dataset.detect_events('ivt')

dataset.events[0]
Events
  • DataFrame (4 columns, 72 rows)
    shape: (72, 4)
    nameonsetoffsetduration
    stri64i64i64
    "fixation"19881451988322177
    "fixation"19883511988546195
    "fixation"19885921988736144
    "fixation"19887881989012224
    "fixation"19890441989170126
    …………
    "fixation"20041142004349235
    "fixation"20043992004687288
    "fixation"20047142004878164
    "fixation"20049302005109179
    "fixation"20051382005286148
  • trial_columns:
    None

Detecting out-of-screen samples (trackloss)#

Eye trackers sometimes report gaze coordinates outside the screen boundaries — for example, negative pixel values or values beyond the screen resolution. These represent trackloss: periods where the gaze data is unreliable.

Inspired by the mark_trackloss function from the VWPre R package, pymovements provides an out_of_screen detection method that flags samples outside the defined screen region (including NaN values) and groups consecutive bad samples into events.

We use the screen resolution from the experiment configuration:

# The screen dimensions are automatically sourced from the experiment configuration
screen = dataset.definition.experiment.screen
print(f"Screen resolution: {screen.width_px} x {screen.height_px} pixels")
print(f"Valid pixel range: x=[0, {screen.width_px}], y=[0, {screen.height_px}]")

# Detect out-of-screen events — screen boundaries are auto-filled from Gaze.experiment.screen
dataset.detect_events('out_of_screen')

# Report trackloss percentage for each gaze object (similar to VWPre's mark_trackloss output)
for i, gaze in enumerate(dataset.gaze):
    oos_events = gaze.events.filter_by_name('out_of_screen')
    n_events = len(oos_events)
    total_samples = len(gaze.samples)

    if n_events > 0:
        total_oos_samples = int(oos_events['duration'].sum())
        pct = round(total_oos_samples / total_samples * 100, 2)
        print(f"\nGaze[{i}]: {n_events} out-of-screen events detected")
        print(f"  {total_oos_samples}/{total_samples} samples ({pct}%) marked as trackloss")
    else:
        print(f"\nGaze[{i}]: 0/{total_samples} samples marked as trackloss (0%) — clean data")

Screen resolution: 1280 x 1024 pixels
Valid pixel range: x=[0, 1280], y=[0, 1024]

Gaze[0]: 0/17223 samples marked as trackloss (0%) — clean data

/home/docs/checkouts/readthedocs.org/user_builds/pymovements/envs/latest/lib/python3.13/site-packages/pymovements/dataset/dataset.py:994: UserWarning: out_of_screen: No events were detected.
  gaze.detect(method, eye=eye, clear=clear, **kwargs)

Next we detect some saccades. This time we don’t use the default parameters but specify our own:

dataset.detect_events('microsaccades', minimum_duration=8)

dataset.events[0].saccades.head()
shape: (5, 4)
nameonsetoffsetduration
stri64i64i64
"saccade"1988323198833714
"saccade"1988341198835110
"saccade"1988546198856721
"saccade"1988570198858313
"saccade"1988736198876024

We can also use the more general interface of the apply() method:

dataset.apply('idt', dispersion_threshold=2.7, name='fixation_ivt')

dataset.events[0].filter_by_name('fixation_ivt').head()
shape: (5, 4)
nameonsetoffsetduration
stri64i64i64
"fixation_ivt"19881451988563418
"fixation_ivt"19885641988750186
"fixation_ivt"19887511989178427
"fixation_ivt"19891791989436257
"fixation_ivt"19894371989600163

Computing event properties#

The event dataframe currently only holds the name, onset, offset and duration of an event (additionally we have some more identifier columns at the beginning).

We now want to compute some additional properties for each event. Event properties are things like peak velocity, amplitude and dispersion during an event.

We start out with computing the dispersion:

dataset.compute_event_properties("dispersion")

dataset.events[0]
Events
  • DataFrame (5 columns, 264 rows)
    shape: (264, 5)
    nameonsetoffsetdurationdispersion
    stri64i64i64f64
    "fixation"198814519883221770.154958
    "fixation"198835119885461950.291833
    "fixation"198859219887361440.296297
    "fixation"198878819890122240.271854
    "fixation"198904419891701260.349
    ……………
    "fixation_ivt"200392920040901612.814851
    "fixation_ivt"200409120043632722.819008
    "fixation_ivt"200436420048835192.768099
    "fixation_ivt"200488520051162312.805674
    "fixation_ivt"200511720052981812.744494
  • trial_columns:
    None

We notice that a new column with the name dispersion has appeared in the event dataframe.

We can also pass a list of properties to compute all of our desired properties in a single run. Let’s add the amplitude and peak velocity:

dataset.compute_event_properties(["amplitude", "peak_velocity"])

dataset.events[0]
Events
  • DataFrame (7 columns, 264 rows)
    shape: (264, 7)
    nameonsetoffsetdurationdispersionamplitudepeak_velocity
    stri64i64i64f64f64f64
    "fixation"198814519883221770.1549580.11007416.24151
    "fixation"198835119885461950.2918330.20639718.88542
    "fixation"198859219887361440.2962970.20954617.690373
    "fixation"198878819890122240.2718540.19271919.130211
    "fixation"198904419891701260.3490.30436218.616167
    …………………
    "fixation_ivt"200392920040901612.8148512.527788212.117446
    "fixation_ivt"200409120043632722.8190082.518967244.333244
    "fixation_ivt"200436420048835192.7680992.46208194.527643
    "fixation_ivt"200488520051162312.8056742.507902203.067333
    "fixation_ivt"200511720052981812.7444942.578767329.741947
  • trial_columns:
    None

Plotting our data#

pymovements provides a range of plotting functions.

You can browse through the available plotting functions here: Plotting

In this tutorial we will plot the saccadic main sequence of our data.

pm.plotting.main_sequence_plot(dataset.events[0])

(<Figure size 1500x500 with 1 Axes>,
 <Axes: xlabel='Amplitude [dva]', ylabel='Peak Velocity [dva/s]'>)
../_images/0439460cf6bb03e34238c595faa414c1d880434b8523e91c53403240e7bd86bf.png

Saving and loading your dataframes#

If we want to save interim results, we can simply use the save() method like this:

dataset.save()
Dataset
  • DatasetDefinition
    DatasetDefinition
    • name:
      'ToyDataset'
    • long_name:
      'pymovements Toy Dataset'
    • 'Example toy dataset. This dataset includes monocu...'
      'Example toy dataset.\n\nThis dataset includes monocular eye tracking data from a single participant in a single\nsession. Eye movements are recorded at a sampling frequency of 1000 Hz using an EyeLink Portable\nDuo video-based eye tracker and are provided as pixel coordinates.\n\nThe participant is instructed to read 4 texts with 5 screens each.\n'
    • Experiment
      Experiment
      • EyeTracker
        EyeTracker
        • left:
          None
        • model:
          None
        • mount:
          None
        • right:
          None
        • sampling_rate:
          1000
        • vendor:
          None
        • version:
          None
      • Screen
        Screen
        • distance_cm:
          68
        • height_cm:
          30.2
        • height_px:
          1024
        • origin:
          'upper left'
        • tuple (2 items)
          • 1280
          • 1024
        • tuple (2 items)
          • 38
          • 30.2
        • width_cm:
          38
        • width_px:
          1280
        • x_max_dva:
          15.599386487782953
        • x_min_dva:
          -15.599386487782953
        • y_max_dva:
          12.508044410882546
        • y_min_dva:
          -12.508044410882546
    • list (1 items)
      • ResourceDefinition
        • content:
          'gaze'
        • filename:
          'pymovements-toy-dataset.zip'
        • filename_pattern:
          'trial_{text_id:d}_{page_id:d}.csv'
        • dict (2 items)
          • text_id:
            <class 'int'>
          • page_id:
            <class 'int'>
        • load_function:
          None
        • dict (4 items)
          • time_column:
            'timestamp'
          • time_unit:
            'ms'
          • (2 more)
        • md5:
          '256901852c1c07581d375eef705855d6'
        • mirrors:
          None
        • WebSource
          WebSource(url='https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip', filename='pymovements-toy-dataset.zip', md5='256901852c1c07581d375eef705855d6', mirrors=None)
        • 'https://github.com/pymovements/pymovements-toy-dat...'
          'https://github.com/pymovements/pymovements-toy-dataset/archive/refs/heads/main.zip'
  • tuple (1 items)
    • Events
      • DataFrame (7 columns, 264 rows)
        shape: (264, 7)
        nameonsetoffsetdurationdispersionamplitudepeak_velocity
        stri64i64i64f64f64f64
        "fixation"198814519883221770.1549580.11007416.24151
        "fixation"198835119885461950.2918330.20639718.88542
        "fixation"198859219887361440.2962970.20954617.690373
        "fixation"198878819890122240.2718540.19271919.130211
        "fixation"198904419891701260.3490.30436218.616167
        …………………
        "fixation_ivt"200392920040901612.8148512.527788212.117446
        "fixation_ivt"200409120043632722.8190082.518967244.333244
        "fixation_ivt"200436420048835192.7680992.46208194.527643
        "fixation_ivt"200488520051162312.8056742.507902203.067333
        "fixation_ivt"200511720052981812.7444942.578767329.741947
      • trial_columns:
        None
  • dict (1 items)
    • DataFrame (3 columns, 1 rows)
      shape: (1, 3)
      text_idpage_idfilepath
      i64i64str
      01"pymovements-toy-dataset-main/d…
  • list (1 items)
    • Gaze
      • DataFrame (7 columns, 17223 rows)
        shape: (17_223, 7)
        timestimuli_xstimuli_ypixelpositionvelocityacceleration
        i64f64f64list[f64]list[f64]list[f64]list[f64]
        1988145-1.0-1.0[206.8, 152.4][-10.697598, -8.852399][1.207641, -3.119165][690.085837, -1501.799767]
        1988146-1.0-1.0[206.9, 152.1][-10.695183, -8.859678][1.20764, -4.072198][0.001831, -866.371365]
        1988147-1.0-1.0[207.0, 151.8][-10.692768, -8.866956][1.035119, -4.765267][-575.06741, -57.655244]
        1988148-1.0-1.0[207.1, 151.7][-10.690352, -8.869381][1.207654, -4.245382][-230.013049, 1328.57081]
        1988149-1.0-1.0[207.0, 151.5][-10.692768, -8.874233][1.552735, -2.339263][690.12611, 2021.586565]
        …………………
        2005363-1.0-1.0[361.0, 415.4][-6.932438, -2.386672][-62.062479, -20.465552][-1099.087619, 1477.17518]
        2005364-1.0-1.0[358.0, 414.5][-7.006376, -2.408998][-61.343786, -18.073031][1834.348384, 2599.156806]
        2005365-1.0-1.0[355.8, 413.8][-7.060582, -2.426362][-53.501231, -14.617634][9396.15507, 4547.960553]
        2005366-1.0-1.0[353.1, 413.2][-7.12709, -2.441245][-41.879965, -10.276475][16194.183852, 5079.286997]
        2005367-1.0-1.0[351.2, 412.9][-7.173881, -2.448686][-27.710881, -6.112645][16598.914618, 4193.246498]
      • Events
        Events
        • DataFrame (7 columns, 264 rows)
          shape: (264, 7)
          nameonsetoffsetdurationdispersionamplitudepeak_velocity
          stri64i64i64f64f64f64
          "fixation"198814519883221770.1549580.11007416.24151
          "fixation"198835119885461950.2918330.20639718.88542
          "fixation"198859219887361440.2962970.20954617.690373
          "fixation"198878819890122240.2718540.19271919.130211
          "fixation"198904419891701260.3490.30436218.616167
          …………………
          "fixation_ivt"200392920040901612.8148512.527788212.117446
          "fixation_ivt"200409120043632722.8190082.518967244.333244
          "fixation_ivt"200436420048835192.7680992.46208194.527643
          "fixation_ivt"200488520051162312.8056742.507902203.067333
          "fixation_ivt"200511720052981812.7444942.578767329.741947
        • trial_columns:
          None
      • dict (2 items)
        • text_id:
          0
        • page_id:
          1
      • messages:
        None
      • trial_columns:
        None
      • Experiment
        Experiment
        • EyeTracker
          EyeTracker
          • left:
            None
          • model:
            None
          • mount:
            None
          • right:
            None
          • sampling_rate:
            1000
          • vendor:
            None
          • version:
            None
        • Screen
          Screen
          • distance_cm:
            68
          • height_cm:
            30.2
          • height_px:
            1024
          • origin:
            'upper left'
          • tuple (2 items)
            • 1280
            • 1024
          • tuple (2 items)
            • 38
            • 30.2
          • width_cm:
            38
          • width_px:
            1280
          • x_max_dva:
            15.599386487782953
          • x_min_dva:
            -15.599386487782953
          • y_max_dva:
            12.508044410882546
          • y_min_dva:
            -12.508044410882546
  • Participants
    Participants
    • DataFrame (1 columns, 0 rows)
      shape: (0, 1)
      participant_id
      str
    • dict (1 items)
      • dict (1 items)
        • Format:
          'string'
  • path:
    PosixPath('data/ToyDataset')
  • DatasetPaths
    DatasetPaths
    • dataset:
      PosixPath('data/ToyDataset')
    • downloads:
      PosixPath('data/ToyDataset/downloads')
    • events:
      PosixPath('data/ToyDataset/events')
    • precomputed_events:
      PosixPath('data/ToyDataset/precomputed_events')
    • precomputed_reading_measures:
      PosixPath('data/ToyDataset/precomputed_reading_measures')
    • preprocessed:
      PosixPath('data/ToyDataset/preprocessed')
    • raw:
      PosixPath('data/ToyDataset/raw')
    • root:
      PosixPath('data/ToyDataset')
    • stimuli:
      PosixPath('data/ToyDataset/stimuli')
  • precomputed_events:
    list (0 items)
  • precomputed_reading_measures:
    list (0 items)
  • stimuli:
    list (0 items)

Let’s test this out by initializing a new PublicDataset object in the same directory and loading in the preprocessed gaze and event data.

This time we don’t need to download anything.

preprocessed_dataset = pm.Dataset('ToyDataset', path='data/ToyDataset')

dataset.load(events=True, preprocessed=True, subset=subset)

display(dataset.gaze[0])
display(dataset.events[0])
Gaze
  • DataFrame (7 columns, 17223 rows)
    shape: (17_223, 7)
    timestimuli_xstimuli_ypixelpositionvelocityacceleration
    i64f64f64list[f64]list[f64]list[f64]list[f64]
    1988145-1.0-1.0[206.8, 152.4][-10.697598, -8.852399][1.207641, -3.119165][690.085837, -1501.799767]
    1988146-1.0-1.0[206.9, 152.1][-10.695183, -8.859678][1.20764, -4.072198][0.001831, -866.371365]
    1988147-1.0-1.0[207.0, 151.8][-10.692768, -8.866956][1.035119, -4.765267][-575.06741, -57.655244]
    1988148-1.0-1.0[207.1, 151.7][-10.690352, -8.869381][1.207654, -4.245382][-230.013049, 1328.57081]
    1988149-1.0-1.0[207.0, 151.5][-10.692768, -8.874233][1.552735, -2.339263][690.12611, 2021.586565]
    …………………
    2005363-1.0-1.0[361.0, 415.4][-6.932438, -2.386672][-62.062479, -20.465552][-1099.087619, 1477.17518]
    2005364-1.0-1.0[358.0, 414.5][-7.006376, -2.408998][-61.343786, -18.073031][1834.348384, 2599.156806]
    2005365-1.0-1.0[355.8, 413.8][-7.060582, -2.426362][-53.501231, -14.617634][9396.15507, 4547.960553]
    2005366-1.0-1.0[353.1, 413.2][-7.12709, -2.441245][-41.879965, -10.276475][16194.183852, 5079.286997]
    2005367-1.0-1.0[351.2, 412.9][-7.173881, -2.448686][-27.710881, -6.112645][16598.914618, 4193.246498]
  • Events
    Events
    • DataFrame (7 columns, 264 rows)
      shape: (264, 7)
      nameonsetoffsetdurationdispersionamplitudepeak_velocity
      stri64i64i64f64f64f64
      "fixation"198814519883221770.1549580.11007416.24151
      "fixation"198835119885461950.2918330.20639718.88542
      "fixation"198859219887361440.2962970.20954617.690373
      "fixation"198878819890122240.2718540.19271919.130211
      "fixation"198904419891701260.3490.30436218.616167
      …………………
      "fixation_ivt"200392920040901612.8148512.527788212.117446
      "fixation_ivt"200409120043632722.8190082.518967244.333244
      "fixation_ivt"200436420048835192.7680992.46208194.527643
      "fixation_ivt"200488520051162312.8056742.507902203.067333
      "fixation_ivt"200511720052981812.7444942.578767329.741947
    • trial_columns:
      None
  • dict (2 items)
    • text_id:
      0
    • page_id:
      1
  • messages:
    None
  • trial_columns:
    None
  • Experiment
    Experiment
    • EyeTracker
      EyeTracker
      • left:
        None
      • model:
        None
      • mount:
        None
      • right:
        None
      • sampling_rate:
        1000
      • vendor:
        None
      • version:
        None
    • Screen
      Screen
      • distance_cm:
        68
      • height_cm:
        30.2
      • height_px:
        1024
      • origin:
        'upper left'
      • tuple (2 items)
        • 1280
        • 1024
      • tuple (2 items)
        • 38
        • 30.2
      • width_cm:
        38
      • width_px:
        1280
      • x_max_dva:
        15.599386487782953
      • x_min_dva:
        -15.599386487782953
      • y_max_dva:
        12.508044410882546
      • y_min_dva:
        -12.508044410882546
Events
  • DataFrame (7 columns, 264 rows)
    shape: (264, 7)
    nameonsetoffsetdurationdispersionamplitudepeak_velocity
    stri64i64i64f64f64f64
    "fixation"198814519883221770.1549580.11007416.24151
    "fixation"198835119885461950.2918330.20639718.88542
    "fixation"198859219887361440.2962970.20954617.690373
    "fixation"198878819890122240.2718540.19271919.130211
    "fixation"198904419891701260.3490.30436218.616167
    …………………
    "fixation_ivt"200392920040901612.8148512.527788212.117446
    "fixation_ivt"200409120043632722.8190082.518967244.333244
    "fixation_ivt"200436420048835192.7680992.46208194.527643
    "fixation_ivt"200488520051162312.8056742.507902203.067333
    "fixation_ivt"200511720052981812.7444942.578767329.741947
  • trial_columns:
    None
