Detecting Blinks from the Pupil Signal#
Many eye trackers (e.g., EyeLink) provide hardware-detected blink markers, but some do not. Even when they do, you may want an independent detection method for validation or for trackers that only provide a raw pupil signal.
pymovements includes a blink detection function that identifies blinks directly from
the pupil size time series. The algorithm adapts the differential detection approach of
Hershman et al. (2018)
with a two-stage pipeline inspired by
PupilPre
(Kyrolainen et al., 2019):
Flagging – samples where pupil is NaN/zero or shows rapid changes (large absolute difference)
Island absorption – short unflagged gaps between flagged regions are absorbed
Duration defaults (50–500 ms) follow Nystrom et al. (2024).
This tutorial demonstrates:
Loading EyeLink data with
from_asc()Inspecting the recording structure (participant, session, duration)
Running algorithmic blink detection with
gaze.detect('blink')Listing all detected blink instances with timing and duration
Visualizing each blink in context
Comparing with EyeLink hardware blink events
Tuning detection parameters
import matplotlib.pyplot as plt
import numpy as np
import polars as pl
import pymovements as pm
from pymovements.events import blink as blink_fn
from pymovements.gaze.io import from_asc
1. Load EyeLink Data#
We use the ToyDatasetEyeLink dataset. The file name encodes the
participant and session: subject_1_session_1.asc.
We load with events=True so that hardware blink events (blink_eyelink)
are also available for comparison later.
# Download the dataset
dataset = pm.Dataset('ToyDatasetEyeLink', path='data/ToyDataset')
dataset.download()
# Load the first ASC file
raw_dir = dataset.paths.raw / 'pymovements-toy-dataset-eyelink-main'
asc_file = raw_dir / 'raw' / 'subject_1_session_1.asc'
gaze = from_asc(
asc_file,
patterns='eyelink',
encoding='ascii',
events=True,
)
print(f'File: {asc_file.name}')
print('Subject: 1, Session: 1')
print(f'Samples: {gaze.samples.shape}')
print(f'Columns: {gaze.samples.columns}')
gaze.samples.head()
INFO:pymovements.dataset.dataset:
You are downloading the pymovements Toy Dataset EyeLink. Please be aware that pymovements does not
host or distribute any dataset resources and only provides a convenient interface to
download the public dataset resources that were published by their respective authors.
Please cite the referenced publication if you intend to use the dataset in your research.
Using already downloaded and verified file: data/ToyDataset/downloads/pymovements-toy-dataset-eyelink.zip
Extracting pymovements-toy-dataset-eyelink.zip to data/ToyDataset/raw
Extracting archive: 0%| | 0/4 [00:00<?, ?file/s]
Extracting archive: 100%|██████████| 4/4 [00:00<00:00, 88.81file/s]
File: subject_1_session_1.asc
Subject: 1, Session: 1
Samples: (128342, 3)
Columns: ['time', 'pupil', 'pixel']
| time | pupil | pixel |
|---|---|---|
| i64 | f64 | list[f64] |
| 2154556 | 778.0 | [138.1, 132.8] |
| 2154557 | 778.0 | [138.2, 132.7] |
| 2154558 | 778.0 | [138.2, 132.3] |
| 2154559 | 778.0 | [138.1, 131.9] |
| 2154560 | 777.0 | [137.9, 131.6] |
2. Understand the Recording#
This ASC file contains a single continuous recording of one participant in one session.
The time column is in milliseconds (EyeLink native), but the values are large
absolute timestamps (ms since the tracker started). We convert to seconds relative
to the recording start for readable plots.
time_arr = gaze.samples['time'].to_numpy()
pupil_arr = gaze.samples['pupil'].to_numpy()
# Recording timing
t0 = time_arr[0]
duration_s = (time_arr[-1] - t0) / 1000
print(f'EyeLink time range: {t0:.0f} – {time_arr[-1]:.0f} ms')
print(f'Recording duration: {duration_s:.1f} s ({duration_s / 60:.1f} min)')
print(f'Sampling rate: ~{len(time_arr) / duration_s:.0f} Hz')
print(f'Total samples: {len(time_arr)}')
EyeLink time range: 2154556 – 2339291 ms
Recording duration: 184.7 s (3.1 min)
Sampling rate: ~695 Hz
Total samples: 128342

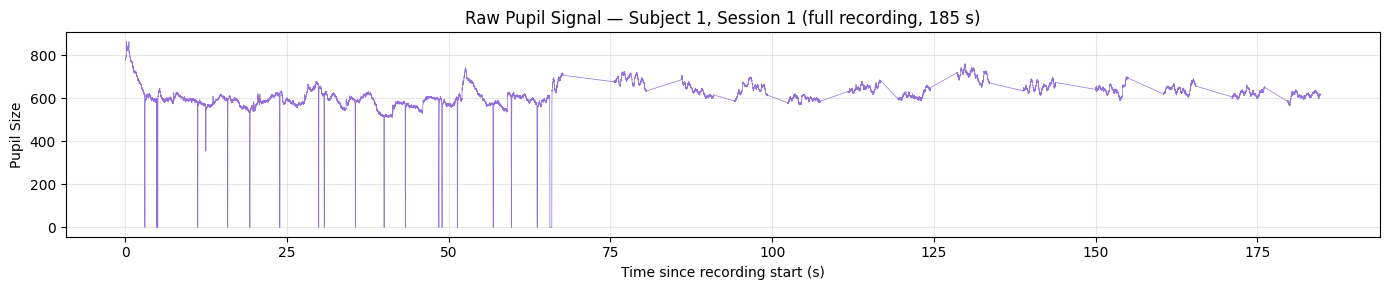

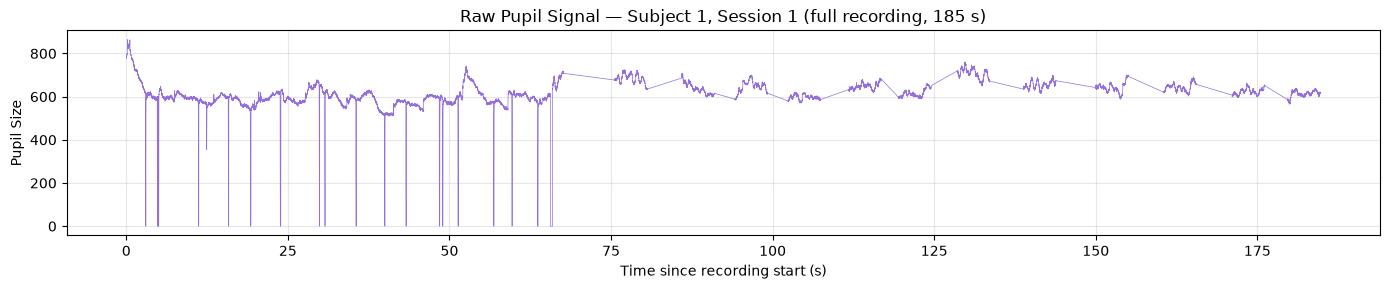

3. Inspect the Raw Pupil Signal#
The pupil signal typically drops to zero or NaN during blinks. Let’s plot the full recording using time relative to the start (in seconds) so the x-axis is easy to interpret.
# Relative time in seconds for all plots
time_s = (time_arr - t0) / 1000
fig, ax = plt.subplots(figsize=(14, 3))
ax.plot(time_s, pupil_arr, color='mediumpurple', linewidth=0.5)
ax.set_xlabel('Time since recording start (s)')
ax.set_ylabel('Pupil Size')
ax.set_title(
f'Raw Pupil Signal — Subject 1, Session 1 '
f'(full recording, {duration_s:.0f} s)',
)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
4. Detect Blinks#
We use gaze.detect('blink') which calls the blink detection algorithm. The function
automatically reads the pupil column from the gaze dataframe.
The detection algorithm adapts the differential approach of Hershman et al. (2018) as implemented in PupilPre (Kyrolainen et al., 2019).
Default parameters:
delta=None– auto-estimated from the 95th percentile of absolute pupil differencesminimum_gap=3– short gaps up to 3 samples are absorbedminimum_candidates_around_gap=2– at least 2 flagged samples on each side to absorb a gapminimum_duration=50– events shorter than 50 ms are discardedmaximum_duration=500– events longer than 500 ms are discarded
The 50–500 ms duration defaults follow Nystrom et al. (2024), who established that typical blinks fall within this range. Events outside this window are likely artifacts (too short) or extended eye closures (too long).
gaze.detect('blink')
detected_blinks = gaze.events.frame.filter(pl.col('name') == 'blink')
print(f'Detected {len(detected_blinks)} blink events')
Detected 19 blink events
Complete list of all detected blinks#
Each row is one blink event. We show onset/offset (original EyeLink ms), duration, and time relative to recording start for easy reference.
blink_table = detected_blinks.select(
pl.col('onset'),
pl.col('offset'),
).with_columns(
(pl.col('offset') - pl.col('onset')).alias('duration_ms'),
((pl.col('onset') - t0) / 1000).round(2).alias('onset_s'),
).with_row_index('blink_nr', offset=1)
# Show ALL rows — no truncation
with pl.Config(tbl_rows=-1):
print(blink_table)
shape: (19, 5)
┌──────────┬─────────┬─────────┬─────────────┬─────────┐
│ blink_nr ┆ onset ┆ offset ┆ duration_ms ┆ onset_s │
│ --- ┆ --- ┆ --- ┆ --- ┆ --- │
│ u32 ┆ i64 ┆ i64 ┆ i64 ┆ f64 │
╞══════════╪═════════╪═════════╪═════════════╪═════════╡
│ 1 ┆ 2157534 ┆ 2157598 ┆ 64 ┆ 2.98 │
│ 2 ┆ 2159345 ┆ 2159418 ┆ 73 ┆ 4.79 │
│ 3 ┆ 2159479 ┆ 2159589 ┆ 110 ┆ 4.92 │
│ 4 ┆ 2165696 ┆ 2165769 ┆ 73 ┆ 11.14 │
│ 5 ┆ 2170325 ┆ 2170407 ┆ 82 ┆ 15.77 │
│ 6 ┆ 2173746 ┆ 2173840 ┆ 94 ┆ 19.19 │
│ 7 ┆ 2178356 ┆ 2178469 ┆ 113 ┆ 23.8 │
│ 8 ┆ 2184393 ┆ 2184475 ┆ 82 ┆ 29.84 │
│ 9 ┆ 2185247 ┆ 2185331 ┆ 84 ┆ 30.69 │
│ 10 ┆ 2190069 ┆ 2190146 ┆ 77 ┆ 35.51 │
│ 11 ┆ 2194512 ┆ 2194580 ┆ 68 ┆ 39.96 │
│ 12 ┆ 2197809 ┆ 2197876 ┆ 67 ┆ 43.25 │
│ 13 ┆ 2202977 ┆ 2203072 ┆ 95 ┆ 48.42 │
│ 14 ┆ 2203451 ┆ 2203558 ┆ 107 ┆ 48.9 │
│ 15 ┆ 2205853 ┆ 2205925 ┆ 72 ┆ 51.3 │
│ 16 ┆ 2211368 ┆ 2211444 ┆ 76 ┆ 56.81 │
│ 17 ┆ 2214193 ┆ 2214287 ┆ 94 ┆ 59.64 │
│ 18 ┆ 2218178 ┆ 2218276 ┆ 98 ┆ 63.62 │
│ 19 ┆ 2220161 ┆ 2220488 ┆ 327 ┆ 65.6 │
└──────────┴─────────┴─────────┴─────────────┴─────────┘
5. Blink-by-Blink Visualization#

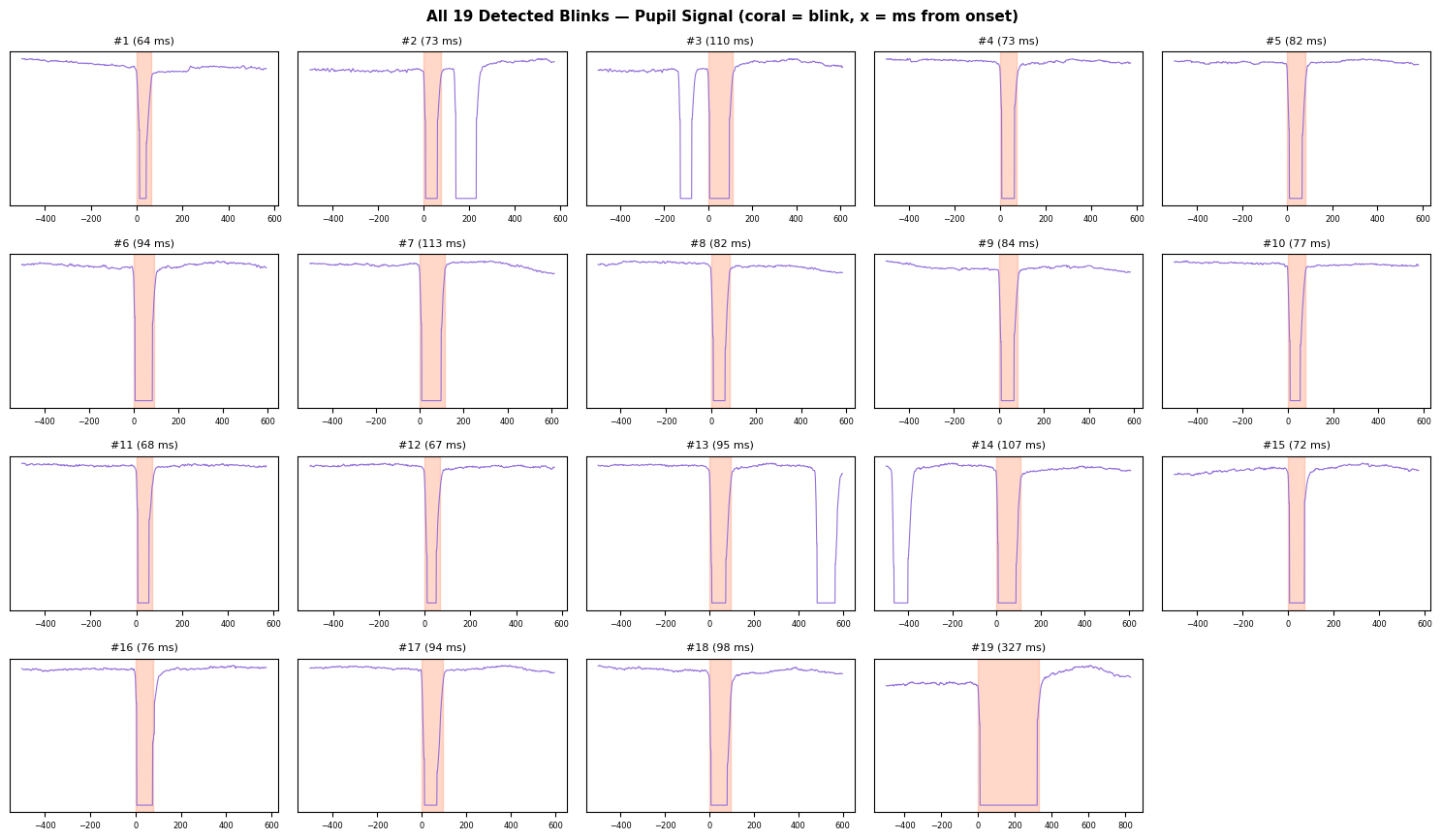

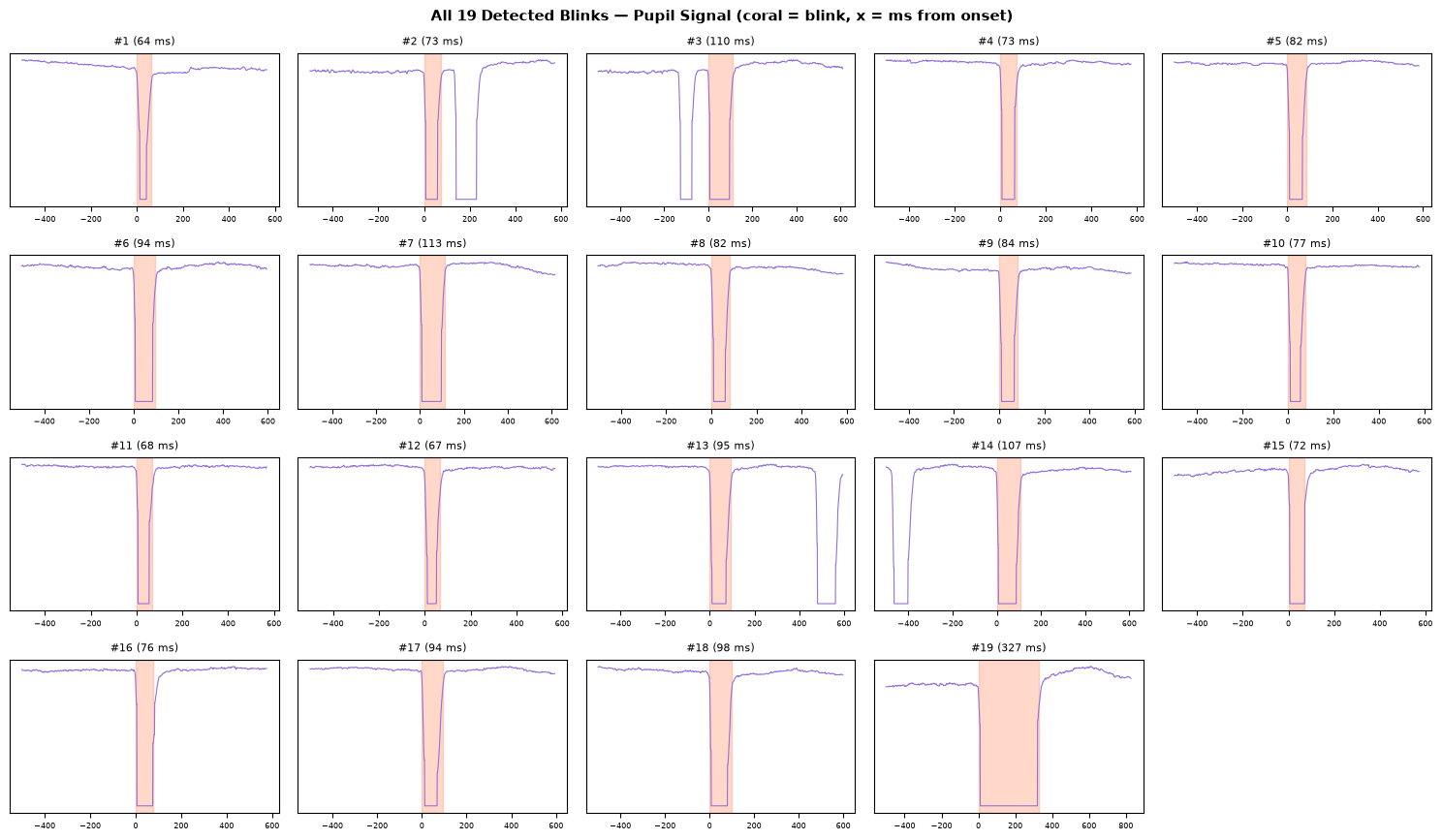

We plot each detected blink with ~500 ms of context on each side, so you can see the pupil drop in detail. Time on the x-axis is relative to the blink onset (in ms).
blink_onsets = detected_blinks['onset'].to_list()
blink_offsets = detected_blinks['offset'].to_list()
n_blinks = len(blink_onsets)
ncols = min(5, n_blinks)
nrows = max(1, int(np.ceil(n_blinks / ncols)))
context_ms = 500 # ms of context before/after blink
fig, axes = plt.subplots(
nrows, ncols, figsize=(ncols * 3, nrows * 2.2), squeeze=False,
)
for idx in range(n_blinks):
r, c = divmod(idx, ncols)
ax = axes[r, c]
onset = blink_onsets[idx]
offset = blink_offsets[idx]
dur = offset - onset
win_start = onset - context_ms
win_end = offset + context_ms
mask = (time_arr >= win_start) & (time_arr <= win_end)
# Time relative to blink onset (ms)
t_rel = time_arr[mask] - onset
ax.plot(t_rel, pupil_arr[mask], color='mediumpurple', linewidth=0.8)
ax.axvspan(0, dur, alpha=0.3, color='coral')
ax.set_title(f'#{idx + 1} ({dur} ms)', fontsize=8)
ax.tick_params(labelsize=6)
ax.set_yticks([])
# Hide unused subplots
for idx in range(n_blinks, nrows * ncols):
r, c = divmod(idx, ncols)
axes[r, c].set_visible(False)
fig.suptitle(
f'All {n_blinks} Detected Blinks — Pupil Signal '
f'(coral = blink, x = ms from onset)',
fontsize=11, fontweight='bold',
)
plt.tight_layout()
plt.show()

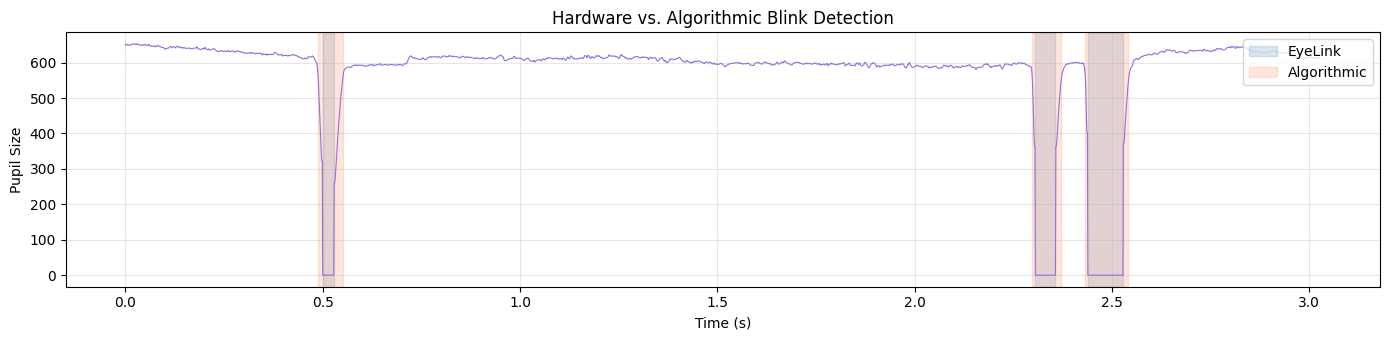

6. Compare with EyeLink Hardware Blinks#
Since we loaded with events=True, we also have blink_eyelink events from the
EyeLink hardware detector. Let’s compare both.
hw_blinks = gaze.events.frame.filter(pl.col('name') == 'blink_eyelink')
print(f'Hardware (EyeLink) blinks: {len(hw_blinks)}')
print(f'Algorithmic blinks: {len(detected_blinks)}')
hw_onsets = hw_blinks['onset'].to_list()
hw_offsets = hw_blinks['offset'].to_list()
if len(hw_onsets) > 0:
# Window around the first few hardware blinks
focus_start = hw_onsets[0] - 500
focus_end = hw_offsets[min(2, len(hw_offsets) - 1)] + 500
mask = (time_arr >= focus_start) & (time_arr <= focus_end)
focus_t_s = (time_arr[mask] - focus_start) / 1000
fig, ax = plt.subplots(figsize=(14, 3.5))
ax.plot(focus_t_s, pupil_arr[mask], color='mediumpurple', linewidth=0.8)
for i, (on, off) in enumerate(zip(hw_onsets, hw_offsets)):
if off >= focus_start and on <= focus_end:
ax.axvspan(
(on - focus_start) / 1000, (off - focus_start) / 1000,
alpha=0.2, color='steelblue',
label='EyeLink' if i == 0 else None,
)
for i, (on, off) in enumerate(zip(blink_onsets, blink_offsets)):
if off >= focus_start and on <= focus_end:
ax.axvspan(
(on - focus_start) / 1000, (off - focus_start) / 1000,
alpha=0.2, color='coral',
label='Algorithmic' if i == 0 else None,
)
ax.legend(loc='upper right')
ax.set_xlabel('Time (s)')
ax.set_ylabel('Pupil Size')
ax.set_title('Hardware vs. Algorithmic Blink Detection')
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
else:
print('No hardware blink events found for comparison.')
Hardware (EyeLink) blinks: 19
Algorithmic blinks: 19

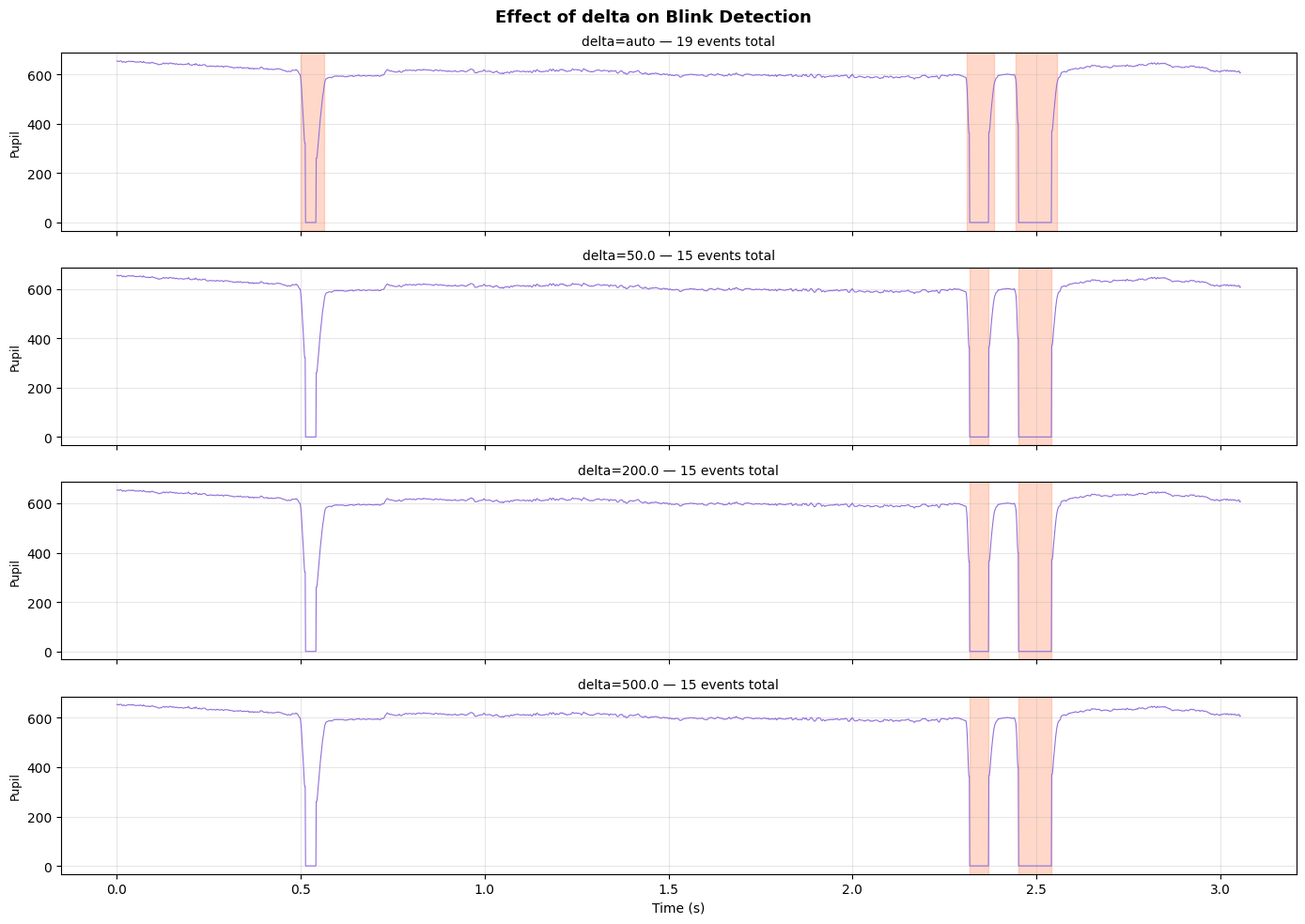

7. Parameter Tuning#
What is delta?#
delta is a threshold on sample-to-sample pupil change: if |pupil[i+1] - pupil[i]| > delta,
both samples get flagged as part of a blink.
Why it matters: The algorithm first flags samples where pupil is 0 or NaN (the middle of a
blink where the tracker lost the pupil entirely). But blinks also have ramps — the pupil signal
drops rapidly as the eyelid closes and recovers rapidly as it opens. delta catches these
transitional samples at the blink edges.
When delta=None (default): It is auto-estimated as 5 x 95th percentile of all valid
|diff(pupil)|. This adapts to each recording — noisy data gets a higher threshold, clean data
gets a lower one.
When to change it:
Situation |
What you see |
What to do |
|---|---|---|
False positives (non-blink artifacts flagged) |
Pupil constriction or noise marked as blinks |
Increase delta (e.g., 200-500) |
Missed blinks (edges not captured) |
Blink regions too narrow, missing the onset/offset ramps |
Decrease delta (e.g., 20-50) |
Very noisy recording |
Auto-delta is too high due to overall noise |
Set delta explicitly to a fixed value |
Clean recording |
Auto-delta works fine |
Leave as |
deltas = [None, 50.0, 200.0, 500.0]
# Focus window around first few blinks
if len(blink_onsets) > 0:
focus_start = blink_onsets[0] - 500
focus_end = blink_offsets[min(2, len(blink_offsets) - 1)] + 500
else:
focus_start = t0
focus_end = t0 + 5000
mask = (time_arr >= focus_start) & (time_arr <= focus_end)
focus_t_s = (time_arr[mask] - focus_start) / 1000
fig, axes = plt.subplots(len(deltas), 1, figsize=(14, 2.5 * len(deltas)), sharex=True)
for ax, d in zip(axes, deltas):
events = blink_fn(
pupil=pupil_arr,
timesteps=time_arr.astype(int),
delta=d,
)
ev_df = events.frame
ax.plot(focus_t_s, pupil_arr[mask], color='mediumpurple', linewidth=0.8)
if len(ev_df) > 0:
for row in ev_df.to_dicts():
on, off = row['onset'], row['offset']
if off >= focus_start and on <= focus_end:
ax.axvspan(
(on - focus_start) / 1000, (off - focus_start) / 1000,
alpha=0.3, color='coral',
)
label = f'delta={d}' if d is not None else 'delta=auto'
ax.set_ylabel('Pupil', fontsize=9)
ax.set_title(f'{label} — {len(ev_df)} events total', fontsize=10)
ax.grid(True, alpha=0.3)
axes[-1].set_xlabel('Time (s)')

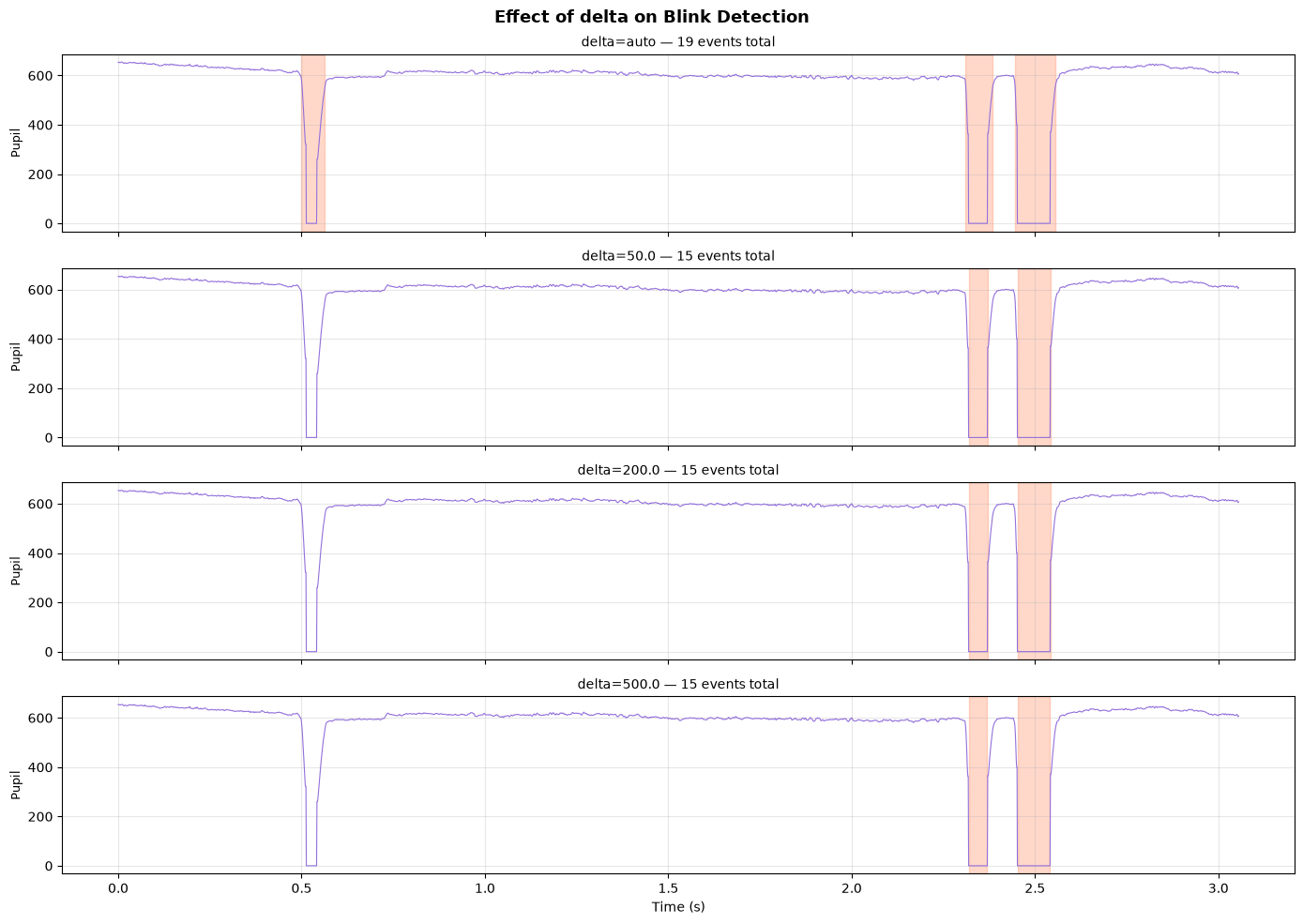

fig.suptitle('Effect of delta on Blink Detection', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()

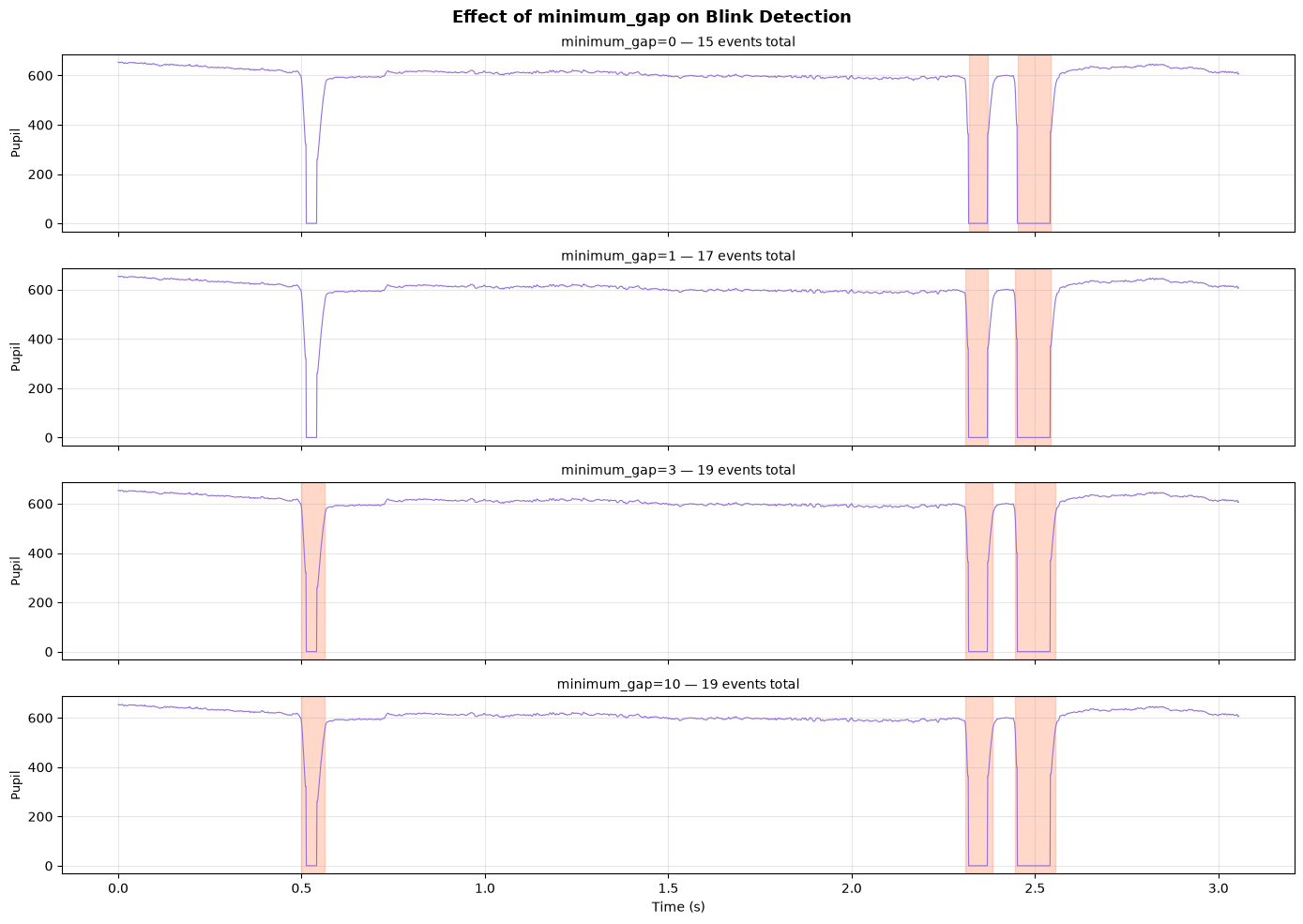

What is minimum_gap?#
minimum_gap controls island absorption — merging short unflagged gaps between flagged
regions. During a blink, the tracker sometimes recovers valid pupil readings for 1-3 samples
in the middle of an otherwise complete blink. Without absorption, this splits one real blink
into two or more events.
minimum_gap=0— disables absorption entirely (no merging)minimum_gap=3(default) — gaps of up to 3 unflagged samples are absorbed if surrounded by at leastminimum_candidates_around_gap=2flagged samples on each sideminimum_gap=10— aggressive merging, useful for very noisy data
When to change it: If you see single blinks split into multiple events, increase it. If distinct close blinks are being incorrectly merged, decrease it.
runs = [0, 1, 3, 10]
fig, axes = plt.subplots(len(runs), 1, figsize=(14, 2.5 * len(runs)), sharex=True)
for ax, mvr in zip(axes, runs):
events = blink_fn(
pupil=pupil_arr,
timesteps=time_arr.astype(int),
minimum_gap=mvr,
)
ev_df = events.frame
ax.plot(focus_t_s, pupil_arr[mask], color='mediumpurple', linewidth=0.8)
if len(ev_df) > 0:
for row in ev_df.to_dicts():
on, off = row['onset'], row['offset']
if off >= focus_start and on <= focus_end:
ax.axvspan(
(on - focus_start) / 1000, (off - focus_start) / 1000,
alpha=0.3, color='coral',
)
ax.set_ylabel('Pupil', fontsize=9)
ax.set_title(f'minimum_gap={mvr} — {len(ev_df)} events total', fontsize=10)
ax.grid(True, alpha=0.3)
axes[-1].set_xlabel('Time (s)')
fig.suptitle(
'Effect of minimum_gap on Blink Detection', fontsize=13, fontweight='bold',
)
plt.tight_layout()
plt.show()
Duration filtering: minimum_duration and maximum_duration#
Following Nystrom et al. (2024),
typical blinks last 50–500 ms. The defaults minimum_duration=50 and
maximum_duration=500 filter out events outside this range:
Events < 50 ms are likely partial tracking losses or noise, not true blinks
Events > 500 ms are likely extended eye closures or prolonged tracking loss
Set maximum_duration=None to disable the upper bound (e.g., if you want to
capture extended eye closures too).
# Compare: default duration filter vs. no upper bound
events_default = blink_fn(
pupil=pupil_arr,
timesteps=time_arr.astype(int),
)
events_no_max = blink_fn(
pupil=pupil_arr,
timesteps=time_arr.astype(int),
maximum_duration=None,
)
events_strict = blink_fn(
pupil=pupil_arr,
timesteps=time_arr.astype(int),
minimum_duration=80,
maximum_duration=300,
)
print(f'Default (50-500 ms): {len(events_default.frame)} blinks')
print(f'No upper bound (50+ ms): {len(events_no_max.frame)} blinks')
print(f'Strict (80-300 ms): {len(events_strict.frame)} blinks')

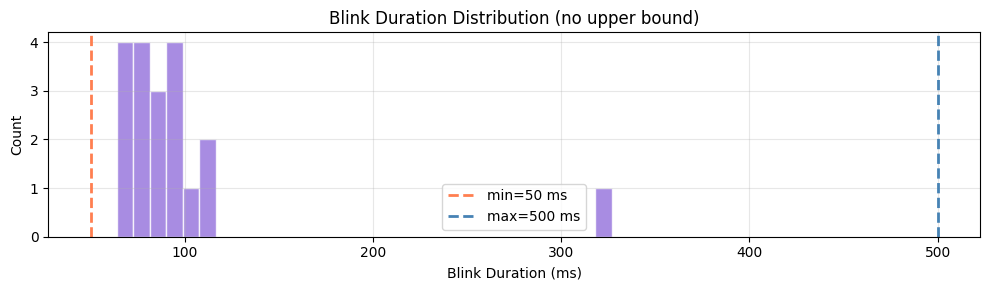

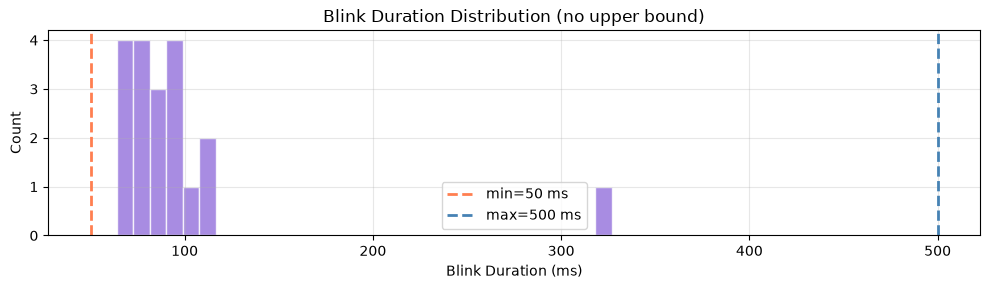

# Show the duration distribution
if len(events_no_max.frame) > 0:
durations = events_no_max.frame['duration'].to_numpy()
fig, ax = plt.subplots(figsize=(10, 3))
ax.hist(durations, bins=30, color='mediumpurple', edgecolor='white', alpha=0.8)
ax.axvline(50, color='coral', linestyle='--', linewidth=2, label='min=50 ms')
ax.axvline(500, color='steelblue', linestyle='--', linewidth=2, label='max=500 ms')
ax.set_xlabel('Blink Duration (ms)')
ax.set_ylabel('Count')
ax.set_title('Blink Duration Distribution (no upper bound)')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
Default (50-500 ms): 19 blinks
No upper bound (50+ ms): 19 blinks
Strict (80-300 ms): 10 blinks
Summary#
blink()detects blinks from the pupil signal without relying on eye-tracker markersThe algorithm adapts Hershman et al. (2018) as implemented in PupilPre (Kyrolainen et al., 2019)
Duration defaults follow Nystrom et al. (2024): 50–500 ms
Key parameters:
delta(sensitivity),minimum_gap(gap merging),minimum_duration/maximum_duration(duration filtering)Use
gaze.detect('blink')for seamless integration with the pymovements pipelineFor cleaning blink artifacts from gaze data, see the Blink Cleaning tutorial
