Heatmap Plotting

In this tutorial, we will demonstrate how to use the heatmap function from the pymovements.plotting module to create a heatmap of gaze data. The heatmap will show the distribution of gaze positions across the experiment screen, with color values indicating the time spent at each position in seconds.

Preparations

We import pymovements as the alias pm for convenience.

import pymovements as pm

/home/docs/checkouts/readthedocs.org/user_builds/pymovements/envs/v0.13.0/lib/python3.9/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Loading the Dataset

Let’s start by downloading our ToyDataset and loading in its data:

dataset = pm.Dataset('ToyDataset', path='data/ToyDataset')
dataset.download()
dataset.load()

Using already downloaded and verified file: data/ToyDataset/downloads/pymovements-toy-dataset.zip
Extracting pymovements-toy-dataset.zip to data/ToyDataset/raw

100%|██████████| 20/20 [00:00<00:00, 192.49it/s]

<pymovements.dataset.dataset.Dataset at 0x7fd39c154d30>

After loading the dataset, we will transform the pixel coordinates to degrees.

dataset.pix2deg()

100%|██████████| 20/20 [00:00<00:00, 705.46it/s]

<pymovements.dataset.dataset.Dataset at 0x7fd39c154d30>

Now our available columns for each GazeDataFrame are the following. We will use the x_right_pos and y_right_pos columns for plotting. However, it is also possible to use the pixel data columns x_right_pix and y_right_pix.

dataset.gaze[5].frame

shape: (23_054, 7)

text_id	page_id	time	x_right_pix	y_right_pix	x_right_pos	y_right_pos
i64	i64	f64	f64	f64	f64	f64
1	1	2.415266e6	176.8	140.2	-11.420403	-9.148145
1	1	2.415267e6	176.7	139.8	-11.422806	-9.157834
1	1	2.415268e6	176.7	139.3	-11.422806	-9.169943
1	1	2.415269e6	176.6	139.3	-11.42521	-9.169943
1	1	2.41527e6	176.7	139.3	-11.422806	-9.169943
1	1	2.415271e6	176.8	139.5	-11.420403	-9.1651
1	1	2.415272e6	177.3	139.8	-11.408386	-9.157834
1	1	2.415273e6	177.8	140.0	-11.396367	-9.15299
1	1	2.415274e6	178.3	140.0	-11.384348	-9.15299
1	1	2.415275e6	178.3	139.9	-11.384348	-9.155412
1	1	2.415276e6	178.0	140.2	-11.39156	-9.148145
1	1	2.415277e6	177.7	140.4	-11.398771	-9.143301
…	…	…	…	…	…	…
1	1	2.438308e6	649.1	633.7	0.240135	3.033792
1	1	2.438309e6	648.8	633.9	0.232631	3.038748
1	1	2.43831e6	649.1	634.1	0.240135	3.043704
1	1	2.438311e6	649.6	634.2	0.252642	3.046182
1	1	2.438312e6	650.1	634.1	0.265149	3.043704
1	1	2.438313e6	650.0	634.0	0.262648	3.041226
1	1	2.438314e6	649.9	633.9	0.260146	3.038748
1	1	2.438315e6	649.9	633.9	0.260146	3.038748
1	1	2.438316e6	650.1	633.7	0.265149	3.033792
1	1	2.438317e6	650.2	633.5	0.26765	3.028836
1	1	2.438318e6	650.0	633.2	0.262648	3.021402
1	1	2.438319e6	649.7	633.1	0.255144	3.018924

Creating a Heatmap

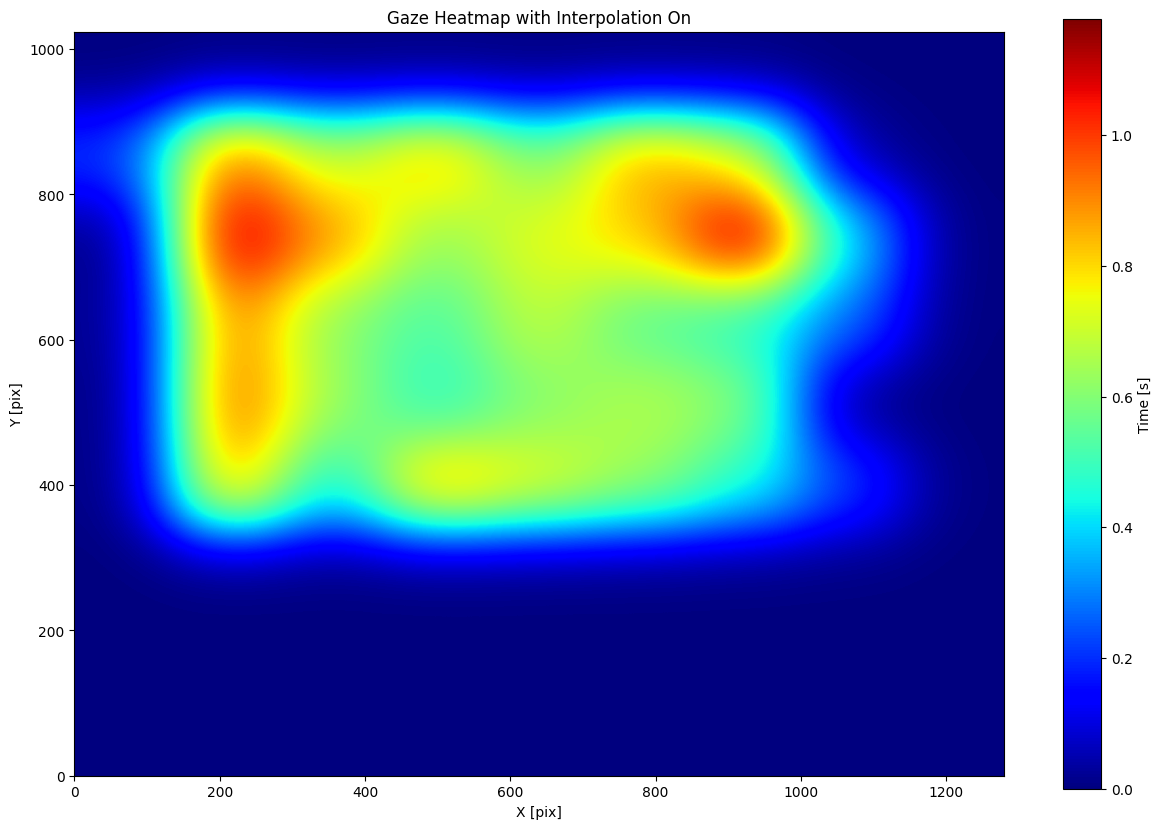

Let’s create a heatmap using the heatmap function from the pymovements library. We will use the default gridsize of 10x10 with interpolation and display the colorbar.

figure = pm.plotting.heatmap(
    gaze=dataset.gaze[5],
    position_columns=('x_right_pix', 'y_right_pix'),
    origin='upper',
    show_cbar=True,
    cbar_label='Time [s]',
    title='Gaze Heatmap with Interpolation On',
    xlabel='X [pix]',
    ylabel='Y [pix]',
    gridsize=[10, 10]
)

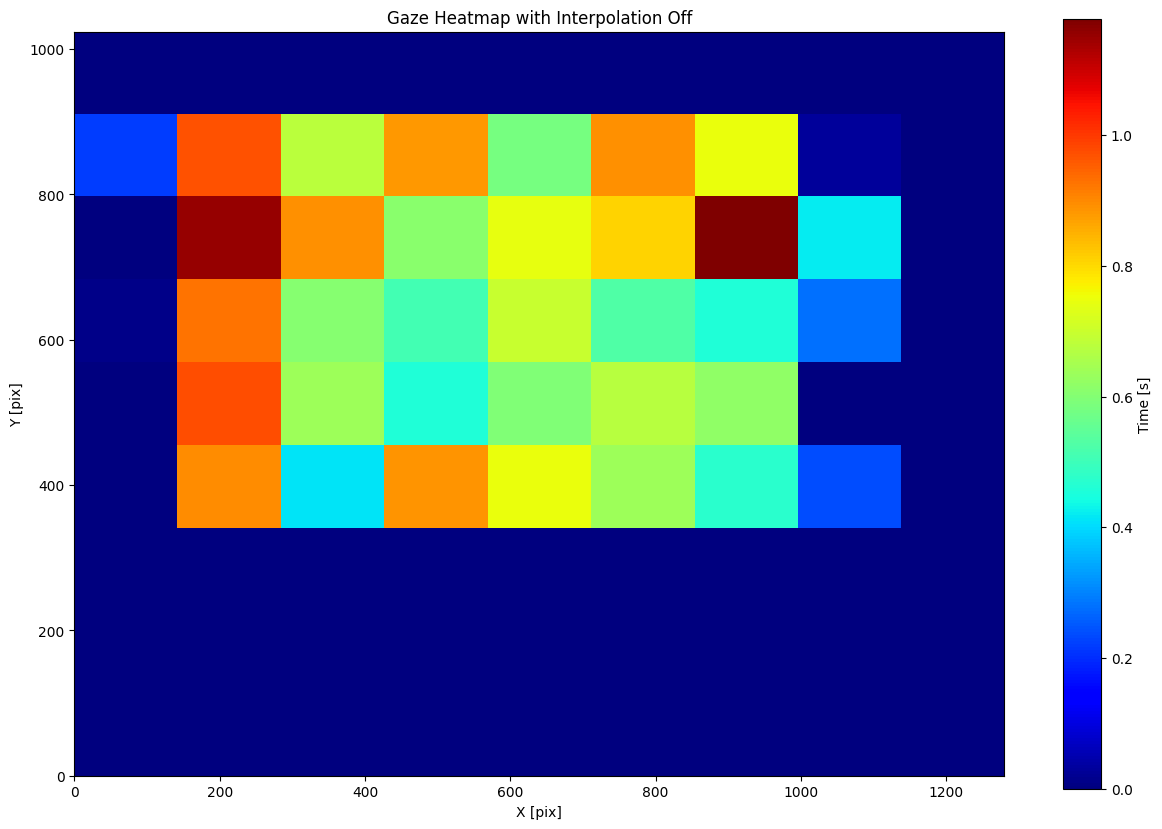

To better understand the effect of the gridsize parameter on the heatmap, we can turn off the interpolation. By doing this, we can clearly visualize the individual bins used to calculate the heatmap. With interpolation turned off, the heatmap will display the raw bin values rather than a smoothed representation.

figure = pm.plotting.heatmap(
    dataset.gaze[5],
    position_columns=('x_right_pix', 'y_right_pix'),
    origin='upper',
    show_cbar=True,
    cbar_label='Time [s]',
    title='Gaze Heatmap with Interpolation Off',
    xlabel='X [pix]',
    ylabel='Y [pix]',
    gridsize=[10, 10],
    interpolation='none'
)

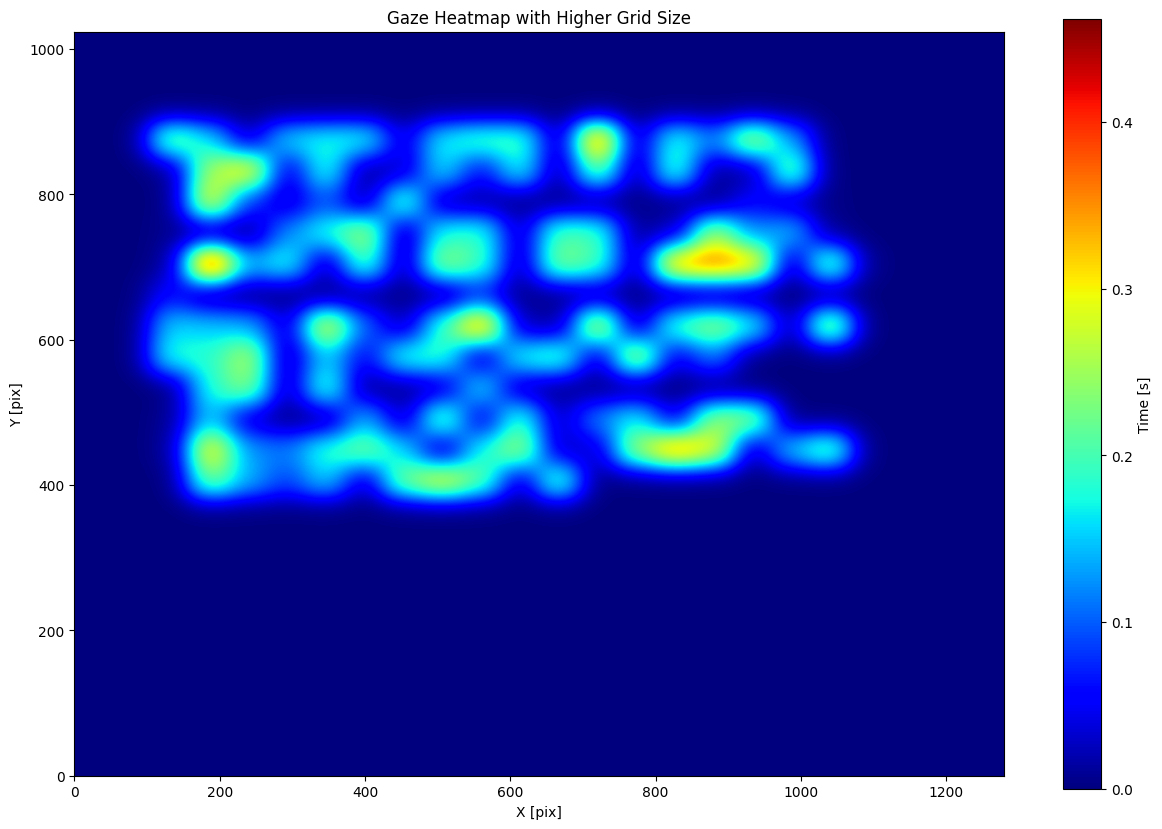

Increasing the gridsize parameter results in a finer grid and more detailed heatmap representation. With a higher grid size, we divide the plot into smaller bins, which can capture more nuances in the data distribution

figure = pm.plotting.heatmap(
    dataset.gaze[5],
    position_columns=('x_right_pix', 'y_right_pix'),
    origin='upper',
    show_cbar=True,
    cbar_label='Time [s]',
    title='Gaze Heatmap with Higher Grid Size',
    xlabel='X [pix]',
    ylabel='Y [pix]',
    gridsize=[25, 25]
)
